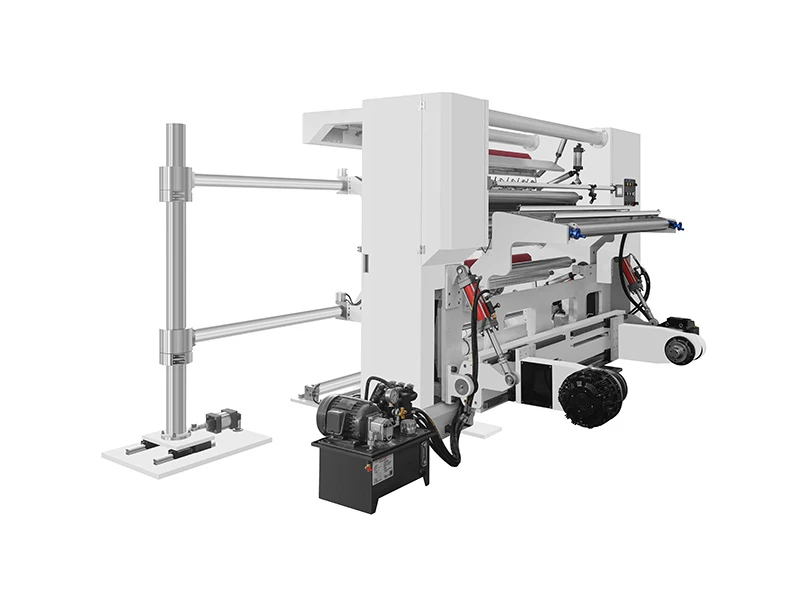

Performance & Features
1. Intelligent & Precise Control
Adopted Siemens PLC control system, integrated with functions including automatic counting, residual material detection & alarm stop, and accurate stop at preset meterage. It features easy operation and stable running, effectively eliminating manual errors and ensuring consistent processing quality.
2. High-sensitivity Web Guiding
Equipped with a high-sensitivity automatic web guiding system to keep materials running steadily and prevent deviation. It guarantees high precision in slitting and rewinding, and improves the neatness of finished products.
Equipped with a high-sensitivity automatic web guiding system to keep materials running steadily and prevent deviation. It guarantees high precision in slitting and rewinding, and improves the neatness of finished products.
3. Automatic Pushing & Unloading
Built with an automatic material pushing function. After shutdown, the motor automatically conveys finished rolled materials to the unloading arm. It can be matched with an automatic packing rack to realize unmanned unloading, greatly improving working efficiency.
Built with an automatic material pushing function. After shutdown, the motor automatically conveys finished rolled materials to the unloading arm. It can be matched with an automatic packing rack to realize unmanned unloading, greatly improving working efficiency.
4. Flexible Slitting Adaptation
Fitted with both circular knives and straight knives, supporting interchangeable slitting for films and papers. Operators can switch modes flexibly according to production requirements to suit various materials for stronger compatibility.
Fitted with both circular knives and straight knives, supporting interchangeable slitting for films and papers. Operators can switch modes flexibly according to production requirements to suit various materials for stronger compatibility.
5. High-load & Stable Feeding
The unwinding unit adopts an independent shaftless hydraulic feeding structure with a load capacity of over 1500KG. It reduces frequent manual handling for labor-saving and safer operation.
The unwinding unit adopts an independent shaftless hydraulic feeding structure with a load capacity of over 1500KG. It reduces frequent manual handling for labor-saving and safer operation.
6. Optional Multiple Shafts
The rewinding unit is standard equipped with 3-inch pneumatic differential shafts, while 6-inch shafts are available as an option. Users can select properly based on actual production to accommodate rolls of different specifications.
The rewinding unit is standard equipped with 3-inch pneumatic differential shafts, while 6-inch shafts are available as an option. Users can select properly based on actual production to accommodate rolls of different specifications.
7. High-efficiency Processing
The maximum running speed reaches 400 meters per minute. It balances high efficiency and processing accuracy to meet the requirements of mass production.
The maximum running speed reaches 400 meters per minute. It balances high efficiency and processing accuracy to meet the requirements of mass production.
8. Full Servo Drive
Deployed with a full servo control system, consisting of 1 main servo motor and 2 rewinding servo motors. It runs smoothly with fast response to ensure error-free slitting and rewinding.
9. Adequate Tooling Inventory
Comes with 10 sets of straight knives and 10 sets of circular knives respectively. It is applicable to slitting films, papers and other materials, reducing frequent tool replacement and enhancing continuous production.
Comes with 10 sets of straight knives and 10 sets of circular knives respectively. It is applicable to slitting films, papers and other materials, reducing frequent tool replacement and enhancing continuous production.
10. User-friendly Splicing Design
A dedicated material splicing table is installed between the unwinding section and main unit for convenient material joint handling, which simplifies operation and reduces production downtime.
A dedicated material splicing table is installed between the unwinding section and main unit for convenient material joint handling, which simplifies operation and reduces production downtime.
11. Intelligent Detection for Quality Assurance
The rewinding unit is fitted with an automatic roll diameter detector, which monitors rewinding status in real time and adjusts tension accordingly. It ensures flat and tight rewinding and upgrades product quality.
The rewinding unit is fitted with an automatic roll diameter detector, which monitors rewinding status in real time and adjusts tension accordingly. It ensures flat and tight rewinding and upgrades product quality.
Optional Accessories
● 6-inch rewinding shaft
● Laser lamp for automatic paper tube alignment
● Automatic traversing straight knife & automatic traversing circular knife
Specifications showing only the width of the specific section:
|
Model |
型号 |
SHGS-C1100 |
SHGS-C1300 |
SHGS-C1600 |
SHGS-C1800 |
|
Roll Width |
卷材宽度 |
1100mm |
1300mm |
1600mm |
1800mm |
|
Max.Unwinding Diameter |
放卷直径 |
0-1500mm |
0-1500mm |
0-1500mm |
0-1500mm |
|
Max.Rewinding Diameter |
收卷直径 |
600/800mm |
600/800mm |
600/800mm |
600/800mm |
|
Slitting speed |
分切速度 |
0-600/min |
0-600/min |
0-600/min |
0-600/min |
|
Correction Accuracy |
纠偏精度 |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
Total Power |
总功率 |
18kw |
23kw |
28kw |
33kw |
|
Machine size |
机器尺寸 |
3750×2000×1950mm |
4050×2000×1950mm |
4350×2000×1950mm |
4550×2000×1950mm |
|
Machine Weight |
机器重量 |
2800kg |
3200kg |
3600kg |
4000kg |
